Subsurface Engineering & Analysis
The primary purpose of soil investigation bores is to determine the relative density and mechanical properties of subsurface deposits, including sands, gravels, silts, and clays. This process is essential for providing accurate soil strength parameters that form the basis of every safe and compliant foundation design in Pakistan's diverse geological landscape.

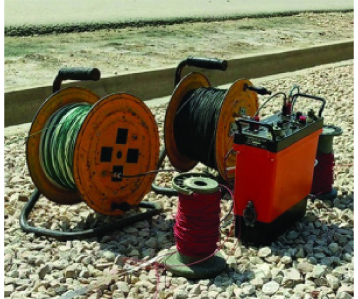

Geo-Studies utilises the Standard Penetration Test (SPT) as the cornerstone of our geotechnical investigation methodology. The SPT is a globally recognised in-situ field test standardised under ASTM D1586. During the test, a split-barrel sampler with an outer diameter of 51 mm is driven into the borehole base using a 63.5 kg hammer released from a height of 760 mm. The number of blows required to advance the sampler through three successive 150 mm intervals is recorded, with the sum of the second and third intervals reported as the N-value. This N-value is the primary index used by structural and geotechnical engineers to estimate bearing capacity, classify soil consistency, and design pile foundations.
Our SPT rigs are capable of advancing boreholes to depths exceeding 30 metres, with testing conducted at regular 1.5 m intervals or as specified by the project engineer. At each test depth, disturbed soil samples are retrieved in the split-barrel sampler and sealed in airtight containers for laboratory analysis. Undisturbed Shelby tube samples are collected from cohesive soil layers where consolidation and shear strength parameters are required for settlement analysis.
Core sampling is performed in rock or very stiff soil formations using rotary drilling techniques. Diamond-tipped core barrels recover continuous cylindrical samples that are photographed, logged, and described in accordance with BS 5930 and ASTM D2113. Rock Quality Designation (RQD) is calculated from the core runs to assess rock mass integrity for deep foundation and tunnelling projects.
Laboratory analysis of recovered samples is conducted at our in-house geotechnical laboratory. Standard tests include grain size distribution (sieve and hydrometer analysis per ASTM D422), Atterberg limits (liquid limit, plastic limit, plasticity index per ASTM D4318), natural moisture content (ASTM D2216), specific gravity (ASTM D854), and compaction characteristics (Proctor test per ASTM D698/D1557). For cohesive soils, unconsolidated undrained (UU) triaxial tests and direct shear tests are performed to determine cohesion and angle of internal friction.
Foundation design compliance is a critical deliverable of every Geo-Studies soil investigation. Our reports provide allowable bearing capacity values at the proposed foundation depth, calculated using Terzaghi's bearing capacity equations with appropriate safety factors. Settlement estimates are provided for both immediate elastic settlement and long-term consolidation settlement in compressible clay layers. All recommendations are cross-referenced against the Pakistan Building Code and relevant international standards including Eurocode 7 and ASCE 7.
Liquefaction assessment is a specialised component of our geotechnical investigations for sites in seismically active zones. Pakistan lies within a high seismic hazard region, and the potential for soil liquefaction during earthquake events poses a significant risk to infrastructure. Geo-Studies applies the simplified procedure developed by Seed and Idriss, subsequently refined by Youd, Idriss, and Andrus, to evaluate the cyclic resistance ratio (CRR) of sandy soils against the cyclic stress ratio (CSR) induced by design earthquake ground motions. The factor of safety against liquefaction is calculated at each SPT test depth, and mitigation measures such as ground improvement or deep foundations are recommended where the factor of safety falls below 1.2.
Our arid condition expertise sets Geo-Studies apart in Pakistan's geotechnical sector. Soils in arid and semi-arid regions of Sindh, Punjab, and Balochistan frequently exhibit natural cementation due to calcium carbonate deposition, gypsum crystallisation, or desiccation hardening. These cemented soils produce artificially elevated SPT N-values that can mislead foundation design if not correctly interpreted. Our engineers apply established correction factors and supplementary testing methods to distinguish true soil strength from cementation effects, ensuring that foundation designs are neither over-conservative nor dangerously optimistic.
Industries served by Geo-Studies soil investigation include textile manufacturing, pharmaceutical production, food and beverage processing, petrochemical and refinery facilities, power generation plants, logistics and warehousing complexes, high-rise residential and commercial developments, bridges and infrastructure works, and public sector institutions. Our client portfolio spans Karachi, Lahore, Faisalabad, Hyderabad, Multan, and project sites across all four provinces of Pakistan.
Standard Penetration Testing (SPT)
Providing critical N-value data for empirical determination of sand layer density, bearing capacity, and structural integrity per ASTM D1586.
Core Sampling & Laboratory Analysis
Continuous core recovery with full laboratory testing including grain size, Atterberg limits, compaction, and shear strength parameters.
Arid Condition Expertise
Specialised testing for arid areas which may exhibit natural cementation, requiring unique standard penetration value interpretation and correction.
Liquefaction Assessment
Based on advanced research by Seed, Youd, and Idriss, we provide cyclic resistance ratio analysis for determining soil liquefaction susceptibility for critical infrastructure.
Foundation Design Compliance
Bearing capacity calculations, settlement estimates, and foundation recommendations aligned with Pakistan Building Code, Eurocode 7, and ASCE 7.
Frequently Asked Questions
What is a Standard Penetration Test (SPT)?
A Standard Penetration Test (SPT) is a geotechnical field test used to determine the mechanical properties of soil. A split-barrel sampler is driven into the soil by a 63.5 kg hammer falling 760 mm, and the number of blows required to advance the sampler 300 mm is recorded as the N-value. This N-value is used to estimate bearing capacity, liquefaction potential, and pile design parameters.
What does a soil investigation report include?
A Geo-Studies soil investigation report includes borehole logs with SPT N-values at regular depth intervals, laboratory test results (grain size analysis, Atterberg limits, moisture content, compaction), bearing capacity calculations, liquefaction assessment, and foundation design recommendations.
When is soil testing required before construction?
Soil testing is required before any significant construction project including industrial buildings, high-rise structures, bridges, and infrastructure works. Building codes in Pakistan require a geotechnical investigation report as part of the structural design submission for all major projects.
